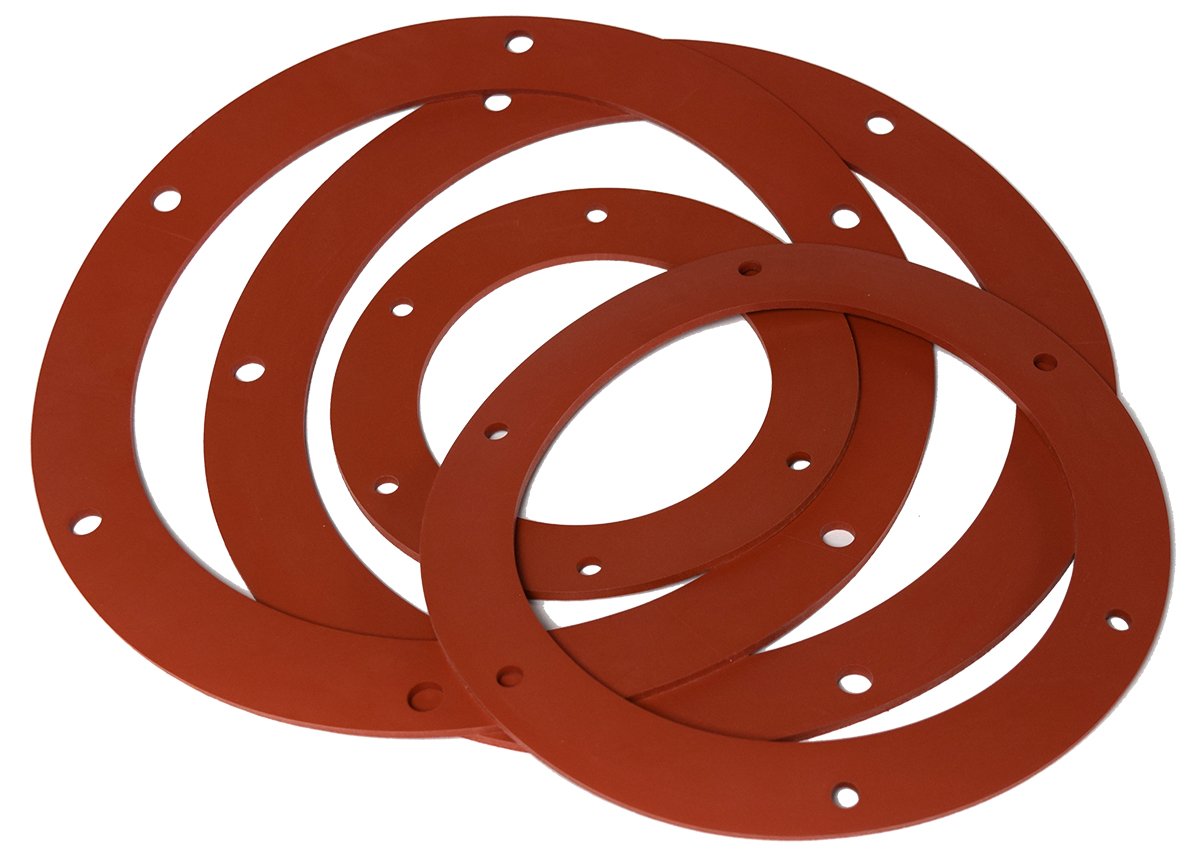

For use with Nordfab Angle Flanges or Angle Flange Adapters. Gasket dimensions match Angle Flange dimensions.

Red silicone material optimal for higher temperature applications.

Silicone temperature range -65° to 450°.

One gasket should be used per joint.
