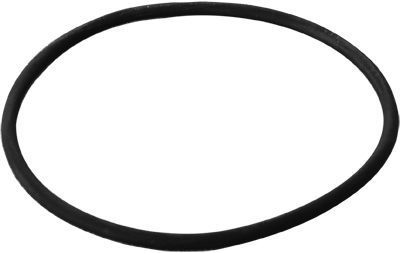

Junta tórica de repuesto para usar con el manguito Quick-Fit. ø3" - 24". Nitrilo negro.

La junta tórica de nitrilo es una junta tórica de repuesto para su uso con manguitos Quick-Fit®.

Esta junta tórica negra se proporciona como estándar con los manguitos. La junta tórica ayuda a proporcionar un sello hermético al fijar los manguitos a otros conductos. Consulte las instrucciones de instalación (Paso 5).

Las juntas tóricas también están disponibles en silicón para su aplicación en entornos de temperaturas más altas.
