El botaguas de techo de Nordfab brinda cobertura para la penetración del techo. Inclinación máxima del techo de 23°. ø 4" a 24". Acero galvanizado o acero inoxidable 304.

El botaguas de techo de Nordfab brinda cobertura para la penetración del techo.

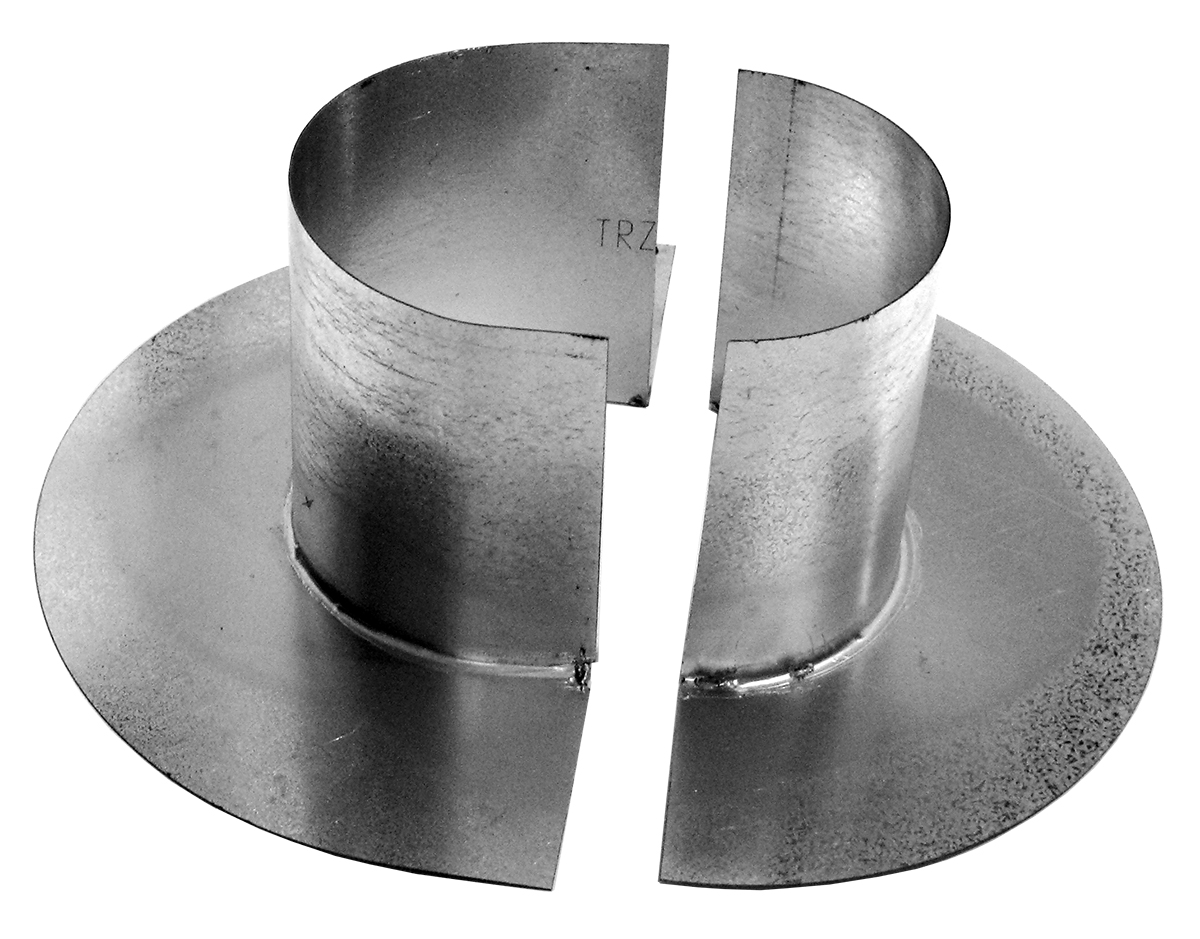

⦁ Hecho en dos mitades y calafateado
⦁ Inclinación máxima del techo de 23°
⦁ Disponible en acero galvanizado y en acero inoxidable 304 (como se muestra a continuación) o acero inoxidable 316 opcional o acero al carbono

Póngase en contacto con Nordfab o con su distribuidor local de Nordfab para obtener ayuda con las opciones de material/personalización.
