Notes for Ordering Quick-Fit & Other Nordfab Ductwork

What should you consider when ordering QF and other duct components from Nordfab Americas?

Nordfab branch end names Nordfab products may be ordered by product description: Product name, material, size(s) and end type(s). When gauge is not specified, the standard gauge will be supplied.

Examples:
Pipe Galv 14QF (standard gauge will be supplied as no gauge is specified)

Branch Galv 20QF 18QF 12QF

Reducer 304SS 12AFL 8AFL

Elbow Galv 14ga 8QF

Order at least one clamp per QF component:
One duct pipe = one clamp
Two elbows = two clamps

Specify all dimensional and end style (connector) information:

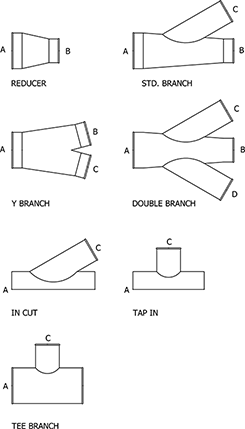

Transitions– specify dimensions of A, B, D, L, X, Y and end style
Branches– A, B, C, or A, B, D, or A, B, C, D
Tap-in or In-cuts– A, B
Reducer– All diameters and end style

It is not possible to provide too much information!

get a quote

Our dealers can provide you with quotes that have the correct number of clamps automatically calculated and they can assist you with determining what size information you may be missing. Get contact information for your local dealer.

information needed to order Nordfab Products

Material and end types

Other helpful ordering information:

Boxing Information and Pipe Quantity sheets – how Nordfab duct pieces are packaged for transport

Carriers– Nordfab’s preferred freight transportation vendors

Terms and Conditions of Sale
