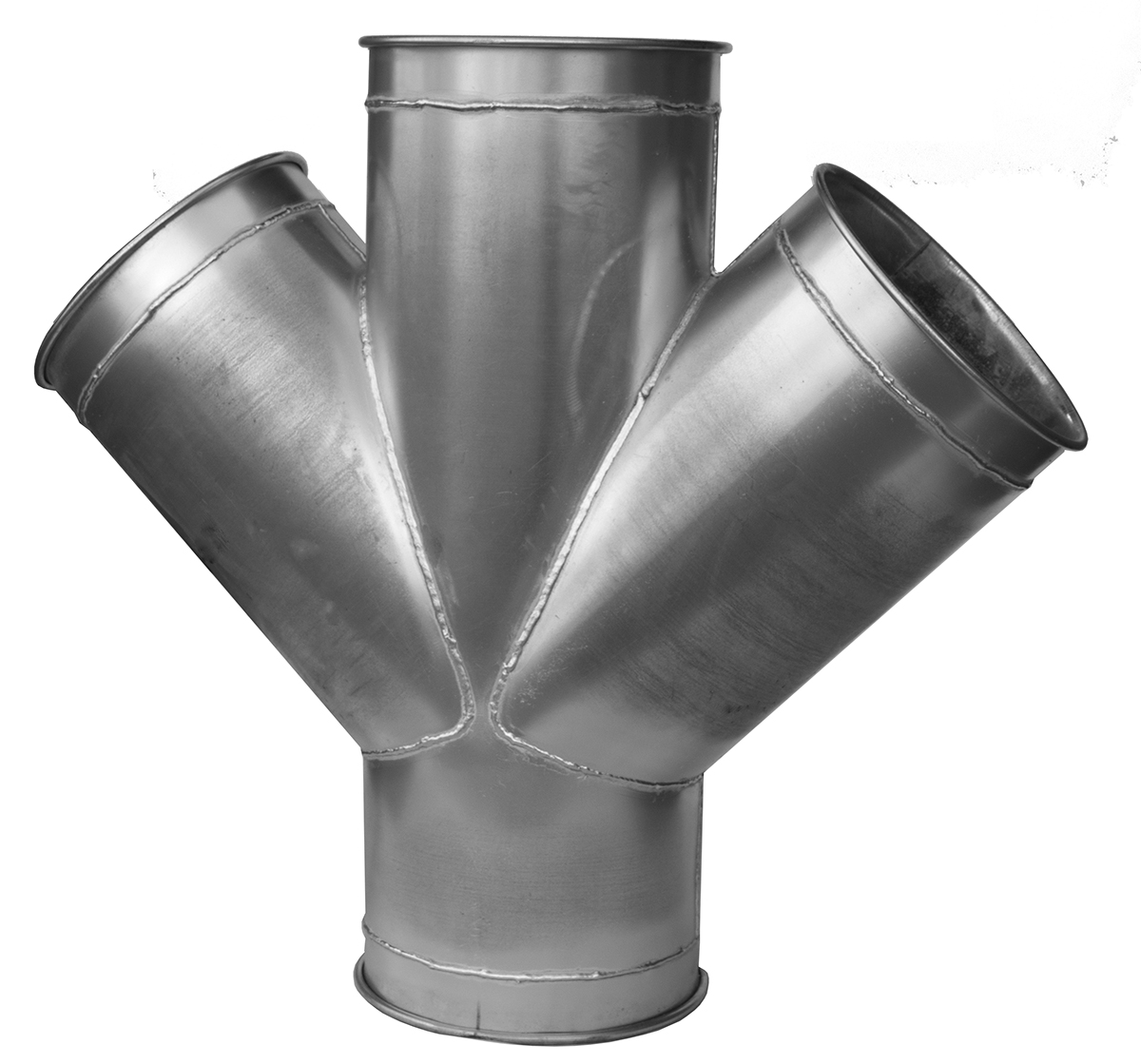

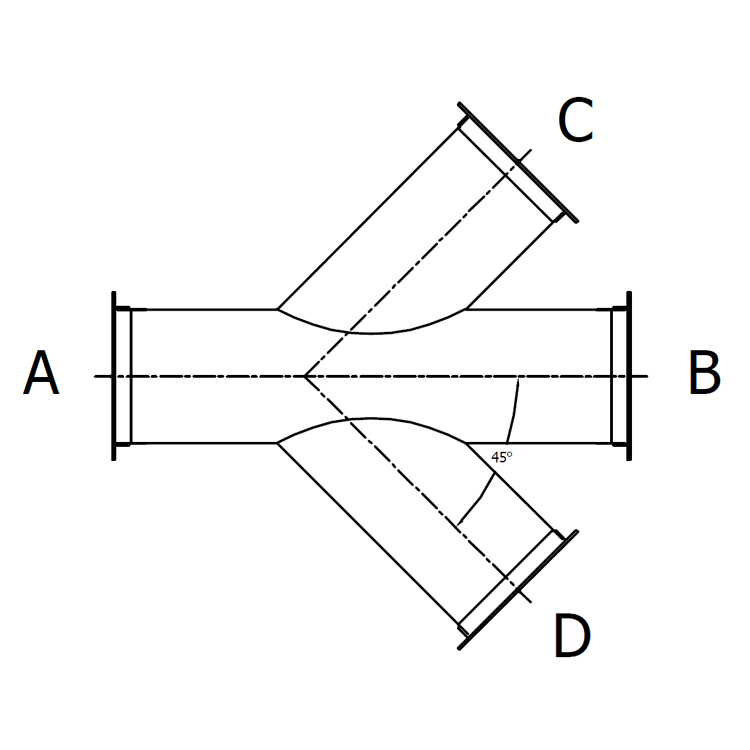

Nordfab Double Branches in 14 gauge galvanized steel are available with Quick-Fit® (QF) rolled ends in diameters up to 24″ and with flanged ends in diameters up to 72″. Also available with 30° angle. When ordering specify A, B, C, D and end type(s). (A – C) ≥ (C-B) and (C) ≥ (D) Reducer at C or D may be required. Use formula above to determine. A vanstone end with rotational Angle Flanges is standard. If welded flanges are required, clocking must be specified.

14 Gauge Double Branches have leak-free, solid welded seams. Elimination of air leakage makes a dust collection system more efficient, providing savings on energy costs.

Flanges are industry standard Angle Flanges.

Flanged Double Branch 14 Gauge 45°
ø A (in) ø B (in) ø C (in) ø D (in) Material Thickness Length (in) Weight (lbs) Legacy Item No. Item No.
8 7 7 7 Galv 14ga 4826-0807-107075 8040113983
8 8 6 6 Galv 14ga 4826-0806-108065 8040113984
8 8 7 7 Galv 14ga 4826-0807-108075 8040113985
9 6 7 7 Galv 14ga 4826-0907-106075 8040113988
9 9 6 6 Galv 14ga 4826-0906-109065 8040113995
9 9 7 7 Galv 14ga 4826-0907-109075 8040113996
9 9 8 8 Galv 14ga 4826-0908-109085 8040113997
9 9 9 9 Galv 14ga 4826-0909-109095 8040113998
10 6 6 6 Galv 14ga 4826-1006-106065 8040113999
10 6 7 7 Galv 14ga 4826-1007-106075 8040114000
10 6 8 8 Galv 14ga 4826-1008-106085 8040114001
10 7 6 6 Galv 14ga 4826-1006-107065 8040114002
10 7 7 7 Galv 14ga 4826-1007-107075 8040114003
10 7 8 8 Galv 14ga 4826-1008-107085 8040114004
10 8 6 6 Galv 14ga 4826-1006-108065 8040114005
10 8 7 7 Galv 14ga 4826-1007-108075 8040114006
10 8 8 8 Galv 14ga 4826-1008-108085 8040114007
10 8 9 9 Galv 14ga 4826-1009-108095 8040114008
10 9 6 6 Galv 14ga 4826-1006-109065 8040114009
10 9 7 7 Galv 14ga 4826-1007-109075 8040114010
10 9 8 8 Galv 14ga 4826-1008-109085 8040114011
10 9 9 9 Galv 14ga 4826-1009-109095 8040114012
10 10 6 6 Galv 14ga 4826-1006-110065 8040114013
10 10 7 7 Galv 14ga 4826-1007-110075 8040114014
10 10 8 8 Galv 14ga 4826-1008-110085 8040114015
10 10 9 9 Galv 14ga 4826-1009-110095 8040114016
10 10 10 10 Galv 14ga 4826-1010-110105 8040114017
11 6 6 6 Galv 14ga 4826-1106-106065 8040114018
11 6 7 7 Galv 14ga 4826-1107-106075 8040114019
11 6 8 8 Galv 14ga 4826-1108-106085 8040114020
11 7 6 6 Galv 14ga 4826-1106-107065 8040114021
11 7 7 7 Galv 14ga 4826-1107-107075 8040114022
11 7 8 8 Galv 14ga 4826-1108-107085 8040114023
11 7 9 9 Galv 14ga 4826-1109-107095 8040114024
11 8 6 6 Galv 14ga 4826-1106-108065 8040114025
11 8 7 7 Galv 14ga 4826-1107-108075 8040114026
11 8 8 8 Galv 14ga 4826-1108-108085 8040114027
11 8 9 9 Galv 14ga 4826-1109-108095 8040114028
11 9 6 6 Galv 14ga 4826-1106-109065 8040114029
11 9 7 7 Galv 14ga 4826-1107-109075 8040114030
11 9 8 8 Galv 14ga 4826-1108-109085 8040114031
11 9 9 9 Galv 14ga 4826-1109-109095 8040114032
11 9 10 10 Galv 14ga 4826-1110-109105 8040114033
11 10 6 6 Galv 14ga 4826-1106-110065 8040114034
11 10 7 7 Galv 14ga 4826-1107-110075 8040114035
11 10 8 8 Galv 14ga 4826-1108-110085 8040114036
11 10 9 9 Galv 14ga 4826-1109-110095 8040114037
11 10 10 10 Galv 14ga 4826-1110-110105 8040114038
11 11 6 6 Galv 14ga 4826-1106-111065 8040114039
11 11 7 7 Galv 14ga 4826-1107-111075 8040114040
11 11 8 8 Galv 14ga 4826-1108-111085 8040114041
11 11 9 9 Galv 14ga 4826-1109-111095 8040114042
11 11 10 10 Galv 14ga 4826-1110-111105 8040114043
11 11 11 11 Galv 14ga 4826-1111-111115 8040114044
12 6 6 6 Galv 14ga 4826-1206-106065 8040114045
12 6 7 7 Galv 14ga 4826-1207-106075 8040114046
12 6 8 8 Galv 14ga 4826-1208-106085 8040114047
12 6 9 9 Galv 14ga 4826-1209-106095 8040114048
12 7 6 6 Galv 14ga 4826-1206-107065 8040114049
12 7 7 7 Galv 14ga 4826-1207-107075 8040114050
12 7 8 8 Galv 14ga 4826-1208-107085 8040114051
12 7 9 9 Galv 14ga 4826-1209-107095 8040114052
12 8 6 6 Galv 14ga 4826-1206-108065 8040114053
12 8 7 7 Galv 14ga 4826-1207-108075 8040114054
12 8 8 8 Galv 14ga 4826-1208-108085 8040114055
12 8 9 9 Galv 14ga 4826-1209-108095 8040114056
12 8 10 10 Galv 14ga 4826-1210-108105 8040114057
12 9 6 6 Galv 14ga 4826-1206-109065 8040114058
12 9 7 7 Galv 14ga 4826-1207-109075 8040114059
12 9 8 8 Galv 14ga 4826-1208-109085 8040114060
12 9 9 9 Galv 14ga 4826-1209-109095 8040114061
12 9 10 10 Galv 14ga 4826-1210-109105 8040114062
12 10 6 6 Galv 14ga 4826-1206-110065 8040114063
12 10 7 7 Galv 14ga 4826-1207-110075 8040114064
12 10 8 8 Galv 14ga 4826-1208-110085 8040114065
12 10 9 9 Galv 14ga 4826-1209-110095 8040114066
12 10 10 10 Galv 14ga 4826-1210-110105 8040114067
12 10 11 11 Galv 14ga 4826-1211-110115 8040114068
12 11 6 6 Galv 14ga 4826-1206-111065 8040114069
12 11 7 7 Galv 14ga 4826-1207-111075 8040114070
12 11 8 8 Galv 14ga 4826-1208-111085 8040114071
12 11 9 9 Galv 14ga 4826-1209-111095 8040114072
12 11 10 10 Galv 14ga 4826-1210-111105 8040114073
12 11 11 11 Galv 14ga 4826-1211-111115 8040114074
12 12 6 6 Galv 14ga 4826-1206-112065 8040114075
12 12 7 7 Galv 14ga 4826-1207-112075 8040114076
12 12 8 8 Galv 14ga 4826-1208-112085 8040114077
12 12 9 9 Galv 14ga 4826-1209-112095 8040114078
12 12 10 10 Galv 14ga 4826-1210-112105 8040114079
12 12 11 11 Galv 14ga 4826-1211-112115 8040114080
12 12 12 12 Galv 14ga 4826-1212-112125 8040114081
13 6 6 6 Galv 14ga 4826-1306-106065 8040114082
13 6 7 7 Galv 14ga 4826-1307-106075 8040114083
13 6 8 8 Galv 14ga 4826-1308-106085 8040114084
13 6 9 9 Galv 14ga 4826-1309-106095 8040114085
13 7 6 6 Galv 14ga 4826-1306-107065 8040114086
13 7 7 7 Galv 14ga
