14 Gauge Branches have leak-free, solid welded seams. Nordfab Double Branches in 14 gauge galvanized steel with flanged ends are available in diameters up to 50″. Also available with 30° angle. Branches are also available in 12 gauge steel in diameters up to 72” as well as lighter gauges.

• When ordering specify A, B, and C end type(s).
• A – C ≥ C - B
• Reducer at C or D may be required. Use formula above to determine.

Vanstone ends with rotational Angle Flanges is standard. If welded flanges are required, clocking must be specified.

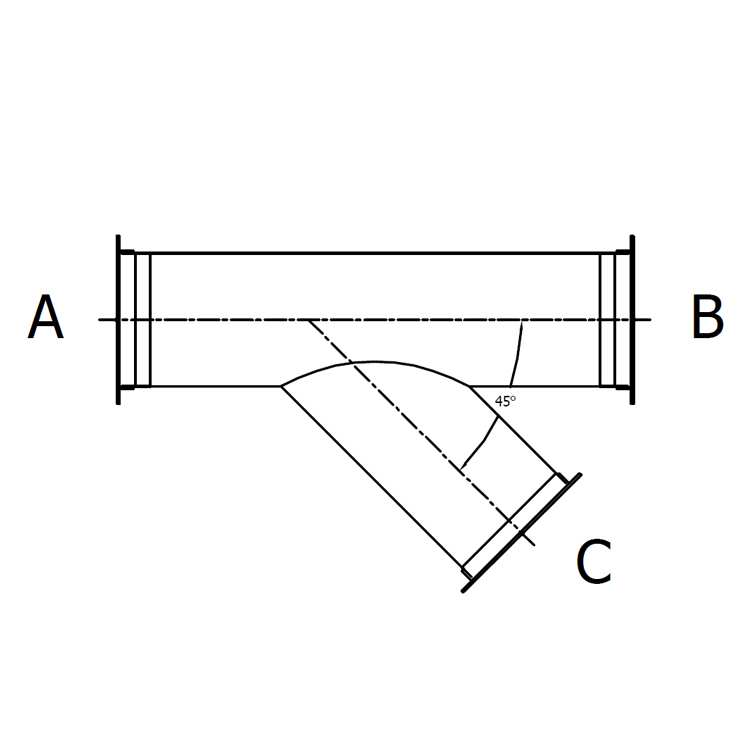

Flanged Branch 14 Gauge 45°
ø A (in) ø B (in) ø C (in) Material Thickness Length (in) Weight (lbs) Legacy Item No. Item No.
8 6 6 Galv 14ga 27 4820-0806-106005 8040024364
8 6 7 Galv 14ga 29 4820-0807-106005 8040024365
8 7 6 Galv 14ga 27 4820-0806-107005 8040024366
8 7 7 Galv 14ga 29 4820-0807-107005 8040024367
8 8 6 Galv 14ga 27 4820-0806-108005 8040024368
8 8 7 Galv 14ga 29 4820-0807-108005 8040024369
8 8 8 Galv 14ga 31 4820-0808-108005 8040024370
9 6 6 Galv 14ga 27 4820-0906-106005 8040024371
9 6 7 Galv 14ga 29 4820-0907-106005 8040024372
9 7 6 Galv 14ga 27 4820-0906-107005 8040024373
9 7 7 Galv 14ga 29 4820-0907-107005 8040024374
9 7 8 Galv 14ga 31 4820-0908-107005 8040024375
9 8 6 Galv 14ga 27 4820-0906-108005 8040024376
9 8 7 Galv 14ga 29 4820-0907-108005 8040024377
9 8 8 Galv 14ga 31 4820-0908-108005 8040024378
9 9 6 Galv 14ga 27 4820-0906-109005 8040024379
9 9 7 Galv 14ga 29 4820-0907-109005 8040024380
9 9 8 Galv 14ga 31 4820-0908-109005 8040024381
9 9 9 Galv 14ga 33 4820-0909-109005 8040024382
10 6 6 Galv 14ga 27 4820-1006-106005 8040024383
10 6 7 Galv 14ga 29 4820-1007-106005 8040024384
10 6 8 Galv 14ga 31 4820-1008-106005 8040024385
10 7 6 Galv 14ga 27 4820-1006-107005 8040024386
10 7 7 Galv 14ga 29 4820-1007-107005 8040024387
10 7 8 Galv 14ga 31 4820-1008-107005 8040024388
10 8 6 Galv 14ga 27 4820-1006-108005 8040024389
10 8 7 Galv 14ga 29 4820-1007-108005 8040024390
10 8 8 Galv 14ga 31 4820-1008-108005 8040024391
10 8 9 Galv 14ga 33 4820-1009-108005 8040024392
10 9 6 Galv 14ga 27 4820-1006-109005 8040024393
10 9 7 Galv 14ga 29 4820-1007-109005 8040024394
10 9 8 Galv 14ga 31 4820-1008-109005 8040024395
10 9 9 Galv 14ga 33 4820-1009-109005 8040024396
10 10 6 Galv 14ga 27 4820-1006-110005 8040024397
10 10 7 Galv 14ga 29 4820-1007-110005 8040024398
10 10 8 Galv 14ga 31 4820-1008-110005 8040024399
10 10 9 Galv 14ga 33 4820-1009-110005 8040024400
10 10 10 Galv 14ga 35 4820-1010-110005 8040024401
11 6 6 Galv 14ga 27 4820-1106-106005 8040024402
11 6 7 Galv 14ga 29 4820-1107-106005 8040024403
11 6 8 Galv 14ga 31 4820-1108-106005 8040024404
11 7 6 Galv 14ga 27 4820-1106-107005 8040024405
11 7 7 Galv 14ga 29 4820-1107-107005 8040024406
11 7 8 Galv 14ga 31 4820-1108-107005 8040024407
11 7 9 Galv 14ga 33 4820-1109-107005 8040024408
11 8 6 Galv 14ga 27 4820-1106-108005 8040024409
11 8 7 Galv 14ga 29 4820-1107-108005 8040024410
11 8 8 Galv 14ga 31 4820-1108-108005 8040024411
11 8 9 Galv 14ga 33 4820-1109-108005 8040024412
11 9 6 Galv 14ga 27 4820-1106-109005 8040024413
11 9 7 Galv 14ga 29 4820-1107-109005 8040024414
11 9 8 Galv 14ga 31 4820-1108-109005 8040024415
11 9 9 Galv 14ga 33 4820-1109-109005 8040024416
11 9 10 Galv 14ga 35 4820-1110-109005 8040024417
11 10 6 Galv 14ga 27 4820-1106-110005 8040024418
11 10 7 Galv 14ga 29 4820-1107-110005 8040024419
11 10 8 Galv 14ga 31 4820-1108-110005 8040024420
11 10 9 Galv 14ga 33 4820-1109-110005 8040024421
11 10 10 Galv 14ga 35 4820-1110-110005 8040024422
11 11 6 Galv 14ga 27 4820-1106-111005 8040024423
11 11 7 Galv 14ga 29 4820-1107-111005 8040024424
11 11 8 Galv 14ga 31 4820-1108-111005 8040024425
11 11 9 Galv 14ga 33 4820-1109-111005 8040024426
11 11 10 Galv 14ga 35 4820-1110-111005 8040024427
11 11 11 Galv 14ga 37 4820-1111-111005 8040024428
12 6 6 Galv 14ga 27 4820-1206-106005 8040024429
12 6 7 Galv 14ga 29 4820-1207-106005 8040024430
12 6 8 Galv 14ga 31 4820-1208-106005 8040024431
12 6 9 Galv 14ga 33 4820-1209-106005 8040024432
12 7 6 Galv 14ga 27 4820-1206-107005 8040024433
12 7 7 Galv 14ga 29 4820-1207-107005 8040024434
12 7 8 Galv 14ga 31 4820-1208-107005 8040024435
12 7 9 Galv 14ga 33 4820-1209-107005 8040024436
12 8 6 Galv 14ga 27 4820-1206-108005 8040024437
12 8 7 Galv 14ga 29 4820-1207-108005 8040024438
12 8 8 Galv 14ga 31 4820-1208-108005 8040024439
12 8 9 Galv 14ga 33 4820-1209-108005 8040024440
12 8 10 Galv 14ga 35 4820-1210-108005 8040024441
12 9 6 Galv 14ga 27 4820-1206-109005 8040024442
12 9 7 Galv 14ga 29 4820-1207-109005 8040024443
12 9 8 Galv 14ga 31 4820-1208-109005 8040024444
12 9 9 Galv 14ga 33 4820-1209-109005 8040024445
12 9 10 Galv 14ga 35 4820-1210-109005 8040024446
12 10 6 Galv 14ga 27 4820-1206-110005 8040024447
12 10 7 Galv 14ga 29 4820-1207-110005 8040024448
12 10 8 Galv 14ga 31 4820-1208-110005 8040024449
12 10 9 Galv 14ga 33 4820-1209-110005 8040024450
12 10 10 Galv 14ga 35 4820-1210-110005 8040024451
12 10 11 Galv 14ga 37 4820-1211-110005 8040024452
12 11 6 Galv 14ga 27 4820-1206-111005 8040024453
12 11 7 Galv 14ga 29 4820-1207-111005 8040024454
12 11 8 Galv 14ga 31 4820-1208-111005 8040024455
12 11 9 Galv 14ga 33 4820-1209-111005 8040024456
12 11 10 Galv 14ga 35 4820-1210-111005 8040024457
12 11 11 Galv 14ga 37 4820-1211-111005 8040024458
12 12 6 Galv 14ga 27 4820-1206-112005 8040024459
12 12 7 Galv 14ga 29 4820-1207-112005 8040024460
12 12 8 Galv 14ga 31 4820-1208-112005 8040024461
12 12 9 Galv 14ga 33 4820-1209-112005 8040024462
12 12 10 Galv 14ga 35 4820-1210-112005 8040024463
12 12 11 Galv 14ga 37 4820-1211-112005 8040024464
12 12 12 Galv 14ga 39 4820-1212-112005 8040024465
13 6 6 Galv 14ga 27 4820-1306-106005 8040024466
13 6 7 Galv 14ga 29 4820-1307-106005 8040024467
13 6 8 Galv 14ga 31 4820-1308-106005 8040024468
13 6 9 Galv 14ga 33 4820-1309-106005 8040024469
13 7 6 Galv 14ga 27 4820-1306-107005 8040024470
13 7 7 Galv 14ga 29 4820-1307-107005 8040024471
13 7 8 Galv 14ga 31 4820-1308-107005 8040024472
13 7 9 Galv 14ga 33 4820-1309-107005 8040024473
13 7 10 Galv 14ga 35 4820-1310-107005 8040024474
13 8 6 Galv 14ga 27 4820-1306-108005 8040024475
13 8 7 Galv 14ga 29 4820-1307-108005 8040024476
13 8 8 Galv 14ga 31 4820-1308-108005 8040024477
13 8 9 Galv 14ga 33 4820-1309-108005 8040024478
13 8 10 Galv 14ga 35 4820-1310-108005 8040024479
13 9 6 Galv 14ga 27 4820-1306-109005 8040024480
13 9 7 Galv 14ga 29 4820-1307-109005 8040024481
13 9 8 Galv 14ga 31 4820-1308-109005 8040024482
13 9 9 Galv 14ga 33 4820-1309-109005 8040024483
13 9 10 Galv 14ga 35 4820-1310-109005 8040024484
13 9 11 Galv 14ga 37 4820-1311-109005 8040024485
13 10 6 Galv 14ga 27 4820-1306-110005 8040024486
13 10 7 Galv 14ga 29 4820-1307-110005 8040024487
13 10 8 Galv 14ga 31 4820-1308-110005 8040024488
13 10 9 Galv 14ga 33 4820-1309-110005 8040024489
13 10 10 Galv 14ga 35 4820-1310-110005 8040024490
13 10 11 Galv 14ga 37 4820-1311-110005 8040024491
13 11 6 Galv 14ga 27 4820-1306-111005 8040024492
13 11 7 Galv 14ga 29 4820-1307-111005 8040024493
13 11 8 Galv 14ga 31 4820-1308-111005 8040024494
13 11 9 Galv 14ga 33 4820-1309-111005 8040024495
13 11 10 Galv 14ga 35 4820-1310-111005 8040024496
13 11 11 Galv 14ga 37 4820-1311-111005 8040024497
13 11 12 Galv 14ga 39 4820-1312-111005 8040024498
13 12 6 Galv 14ga 27 4820-1306-112005 8040024499
13 12 7 Galv 14ga 29 4820-1307-112005 8040024500
13 12 8 Galv 14ga 31 4820-1308-112005 8040024501
13 12 9 Galv 14ga 33 4820-1309-112005 8040024502
13 12 10 Galv 14ga 35 4820-1310-112005 8040024503
13 12 11 Galv 14ga 37 4820-1311-112005 8040024504
13 12 12 Galv 14ga 39 4820-1312-112005 8040024505
13 13 6 Galv 14ga 27 4820-1306-113005 8040024506
13 13 7 Galv 14ga 29 4820-1307-113005 8040024507
13 13 8 Galv 14ga 31 4820-1308-113005 8040024508
13 13 9 Galv 14ga 33 4820-1309-113005 8040024509
13 13 10 Galv 14ga 35 4820-1310-113005 8040024510
13 13 11 Galv 14ga 37 4820-1311-113005 8040024511
13 13 12 Galv 14ga 39 4820-1312-113005 8040024512
13 13 13
