30° 45°
FB
MFL also available

Resources:

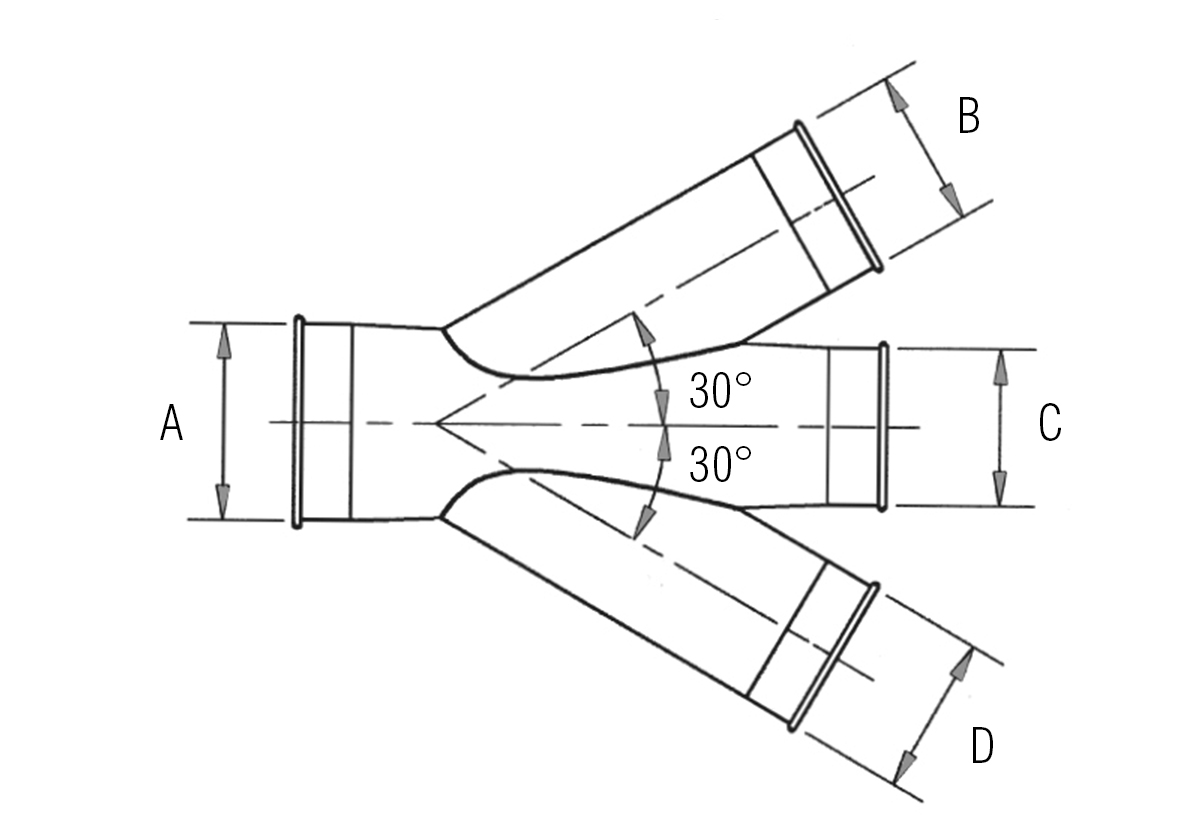

FB Double Branch 30°
ø A (mm) ø B (mm) ø C (mm) ø D (mm) Material Thickness Length Weight (kg) Legacy Art. Nr. Art. No.
80 80 80 80 Galv 0,7mm 1,04 8240007529
100 80 80 80 Galv 0,7mm 1,56 8240007530
100 80 100 80 Galv 0,7mm 1,56 8240007531
100 100 100 100 Galv 0,7mm 1,56 8240007532
120 80 80 80 Galv 0,7mm 1,95 8240007533
120 80 100 80 Galv 0,7mm 1,95 8240007534
120 80 120 80 Galv 0,7mm 1,95 8240007535
120 100 100 100 Galv 0,7mm 1,95 8240007536
120 100 120 100 Galv 0,7mm 1,95 8240007537
120 120 120 120 Galv 0,7mm 1,95 8240007538
125 80 80 80 Galv 0,7mm 2,08 8240007539
125 80 100 80 Galv 0,7mm 2,08 8240007540
125 80 120 80 Galv 0,7mm 2,08 8240007541
125 80 125 80 Galv 0,7mm 2,08 8240007542
125 100 100 100 Galv 0,7mm 2,08 8240007543
125 100 120 100 Galv 0,7mm 2,08 8240007544
125 100 125 100 Galv 0,7mm 2,08 8240007545
125 120 120 120 Galv 0,7mm 2,08 8240007546
125 120 125 120 Galv 0,7mm 2,08 8240007547
125 125 125 125 Galv 0,7mm 2,08 8240007548
140 80 80 80 Galv 0,7mm 2,34 8240007549
140 80 100 80 Galv 0,7mm 2,34 8240007550
140 80 120 80 Galv 0,7mm 2,34 8240007551
140 80 125 80 Galv 0,7mm 2,34 8240007552
140 80 140 80 Galv 0,7mm 2,34 8240007553
140 100 100 100 Galv 0,7mm 2,34 8240007554
140 100 120 100 Galv 0,7mm 2,34 8240007555
140 100 125 100 Galv 0,7mm 2,34 8240007556
140 100 140 100 Galv 0,7mm 2,34 8240007557
140 120 120 120 Galv 0,7mm 2,34 8240007558
140 120 125 120 Galv 0,7mm 2,34 8240007559
140 120 140 120 Galv 0,7mm 2,34 8240007560
140 125 125 125 Galv 0,7mm 2,34 8240007561
140 125 140 125 Galv 0,7mm 2,34 8240007562
140 140 140 140 Galv 0,7mm 2,34 8240007563
150 80 80 80 Galv 0,7mm 2,60 8240007564
150 80 100 80 Galv 0,7mm 2,60 8240007565
150 80 120 80 Galv 0,7mm 2,60 8240007566
150 80 125 80 Galv 0,7mm 2,60 8240007567
150 80 140 80 Galv 0,7mm 2,60 8240007568
150 80 150 80 Galv 0,7mm 2,60 8240007569
150 100 100 100 Galv 0,7mm 2,60 8240007570
150 100 120 100 Galv 0,7mm 2,60 8240007571
150 100 125 100 Galv 0,7mm 2,60 8240007572
150 100 140 100 Galv 0,7mm 2,60 8240007573
150 100 150 100 Galv 0,7mm 2,60 8240007574
150 120 120 120 Galv 0,7mm 2,60 8240007575
150 120 125 120 Galv 0,7mm 2,60 8240007576
150 120 140 120 Galv 0,7mm 2,60 8240007577
150 120 150 120 Galv 0,7mm 2,60 8240007578
150 125 125 125 Galv 0,7mm 2,60 8240007579
150 125 140 125 Galv 0,7mm 2,60 8240007580
150 125 150 125 Galv 0,7mm 2,60 8240007581
150 140 140 140 Galv 0,7mm 2,60 8240007582
150 140 150 140 Galv 0,7mm 2,60 8240007583
150 150 150 150 Galv 0,7mm 2,60 8240007584
160 80 80 80 Galv 0,7mm 2,86 8240007585
160 80 100 80 Galv 0,7mm 2,86 8240007586
160 80 120 80 Galv 0,7mm 2,86 8240007587
160 80 125 80 Galv 0,7mm 2,86 8240007588
160 80 140 80 Galv 0,7mm 2,86 8240007589
160 80 150 80 Galv 0,7mm 2,86 8240007590
160 80 160 80 Galv 0,7mm 2,86 8240007591
160 100 100 100 Galv 0,7mm 2,86 8240007592
160 100 120 100 Galv 0,7mm 2,86 8240007593
160 100 125 100 Galv 0,7mm 2,86 8240007594
160 100 140 100 Galv 0,7mm 2,86 8240007595
160 100
